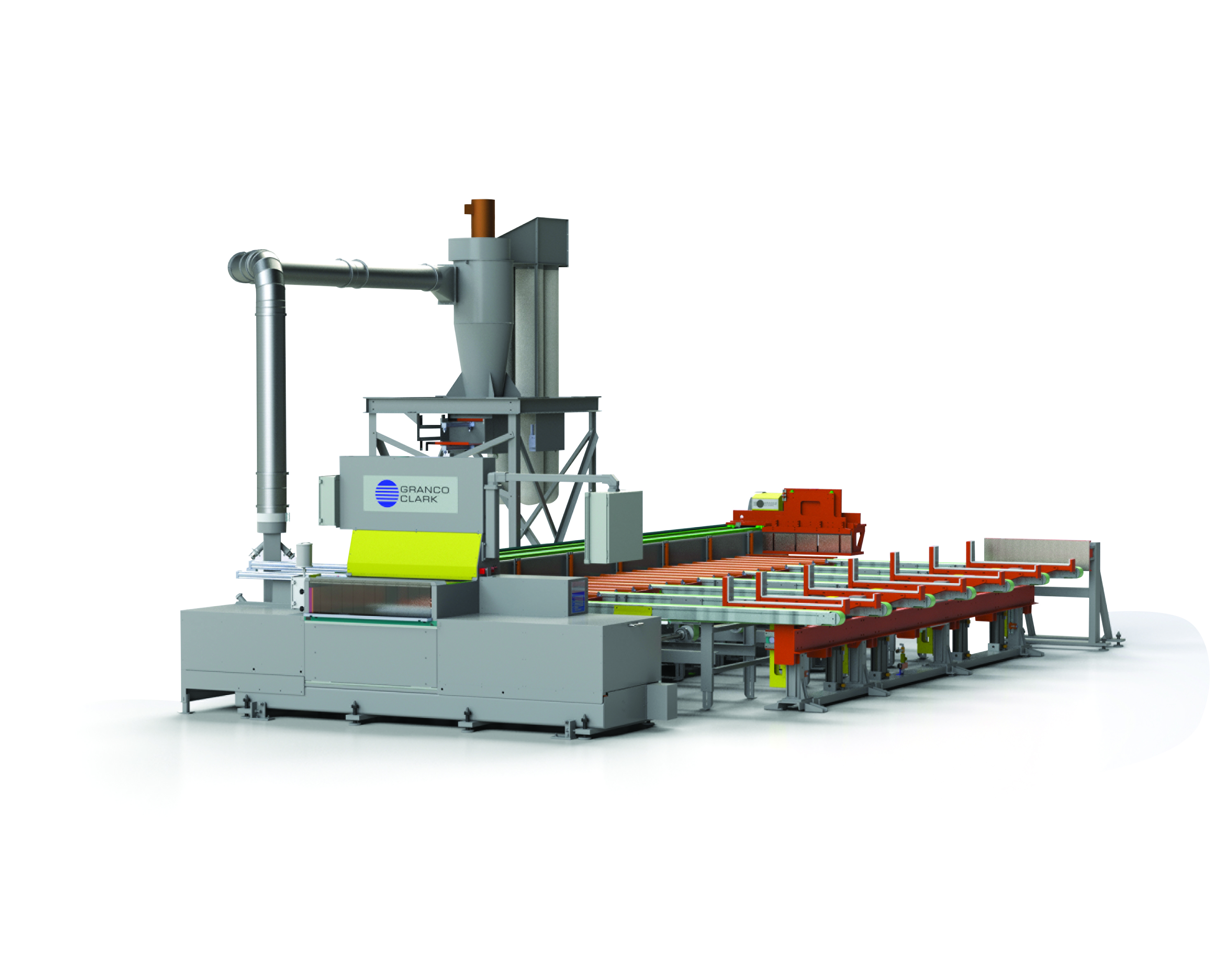

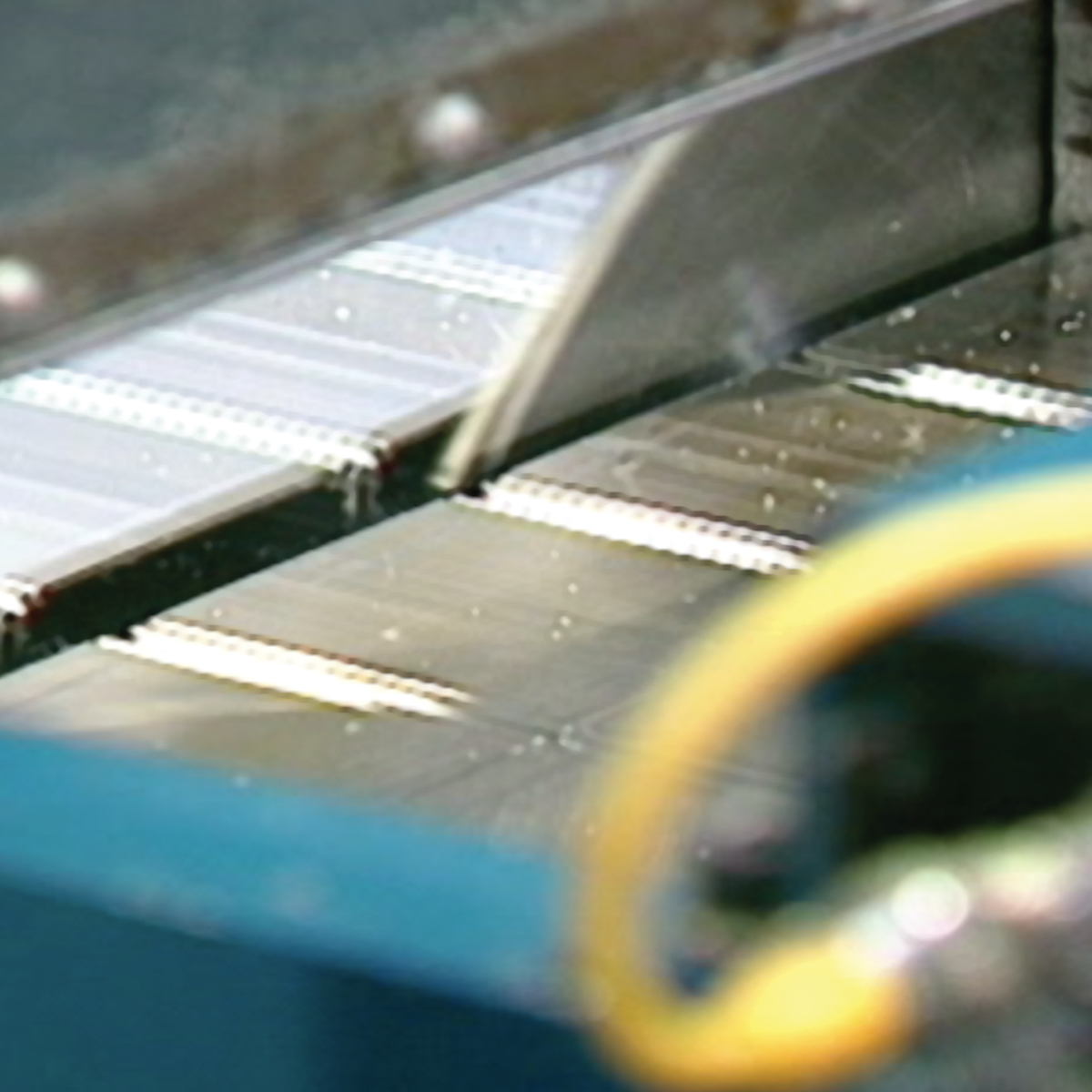

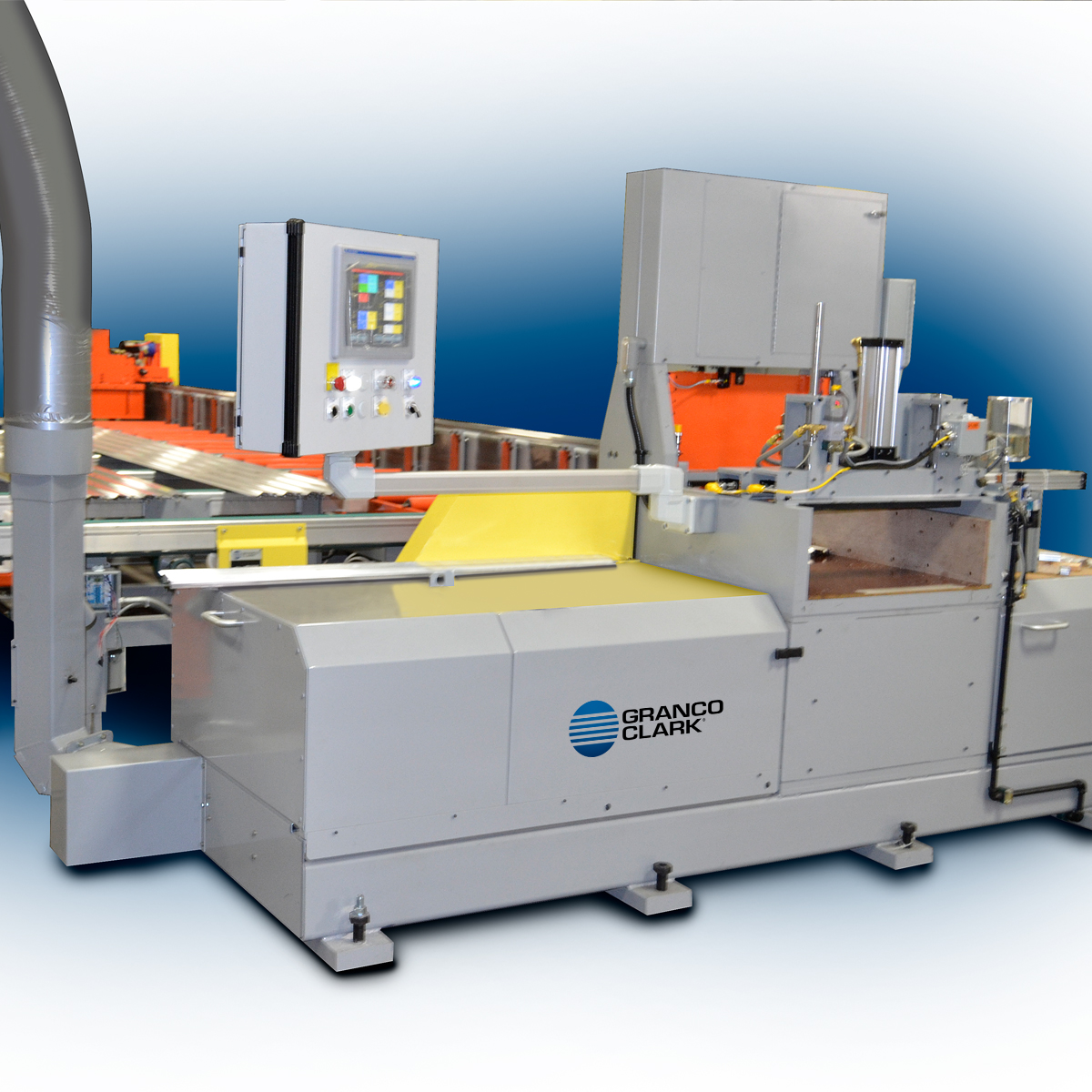

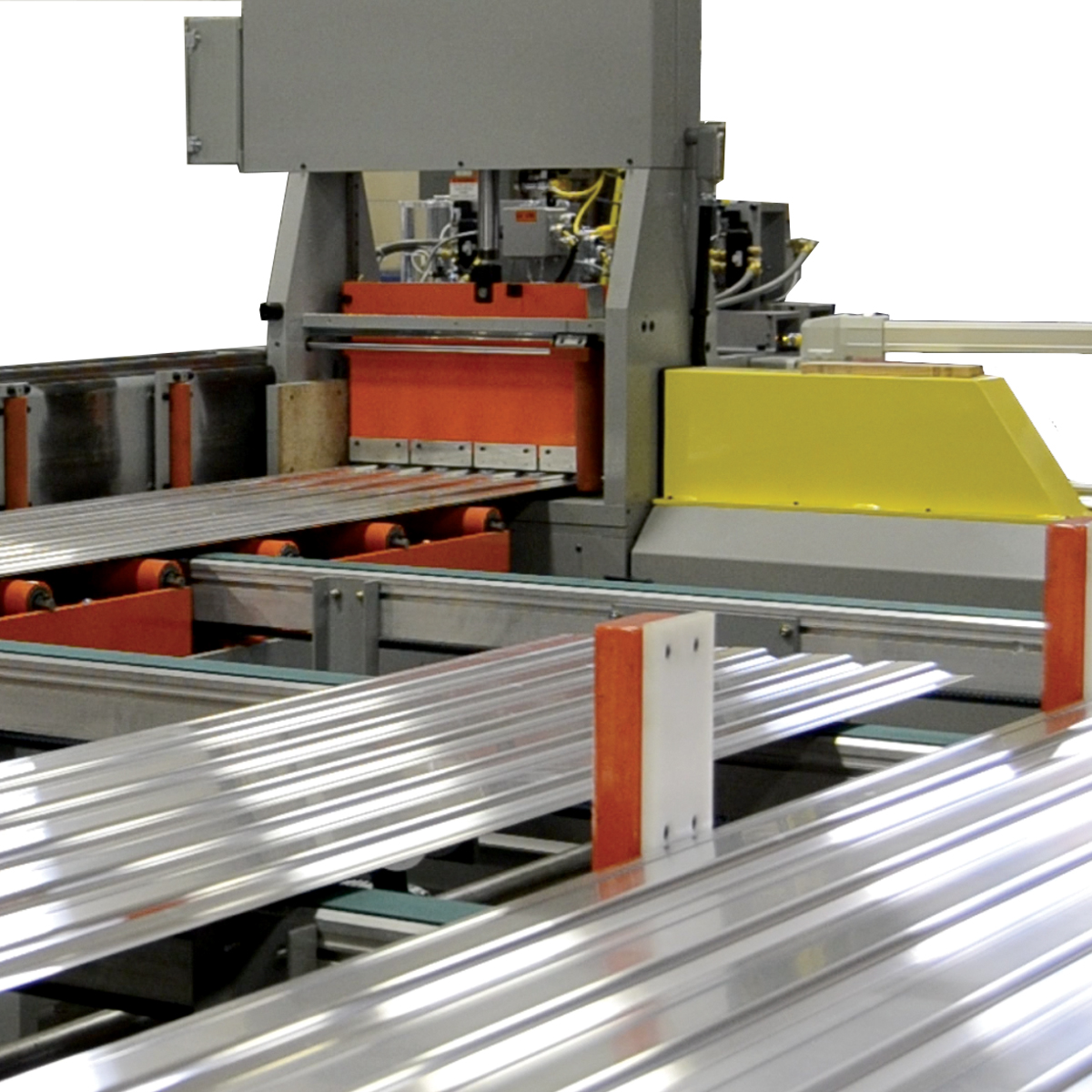

Precision Saw
Precision Saw
Industry’s Most Productive Saw:
- Exceptionally close tolerances combined with highest levels of productivity
- High speed plus large batch window
- Hitch feed provides maximum precision
- Tightest Tolerances
- Vertical and horizontal clamping on both sides of saw line for extremely precise cut
- Back gauge clamps product, providing the fastest indexing in the industry
- Unique hitch-feed mode prevents backrake, allowing for less additional machining and less scrap
- Batch-cuts any number of extrusions that can be contained in the 24 x 8 inch clamping window
- Back gauge lengths to meet any requirement
- Latches: safety interlocks instead of screw on machine guards for rapid blade change and maintenance
- Recipe setup for increased productivity
- Exceptionally close tolerances:
- Cut length accuracy ±0.005
- Straightness of cut ±0.002
- Horizontal squareness ±0.002 inches per foot, corner to corner
- Vertical squareness ±0.0005 inches per inch of thickness
- Parallelism ±0.003
- Surface micro-finish 8–32 RMS
Saw Systems
Precision Saw
Precision Saw Industry’s Most Productive Saw: Exceptionally close tolerances combined with highest levels of productivity High speed plus large batch window Hitch feed provides maximum precision Tightest Tolerances Vertical and horizontal clamping on both sides of saw line for extremely precise cut Back gauge clamps product, providing the fastest indexing in the industry Unique hitch-feed mode prevents backrake, allowing for less additional machining and less scrap Batch-cuts any number of extrusions that can be contained in the 24 x 8 inch clamping window Back gauge lengths to meet any requirement Latches: safety interlocks instead of screw on machine guards for rapid blade change and maintenance Recipe setup for increased productivity Exceptionally close …
More Info

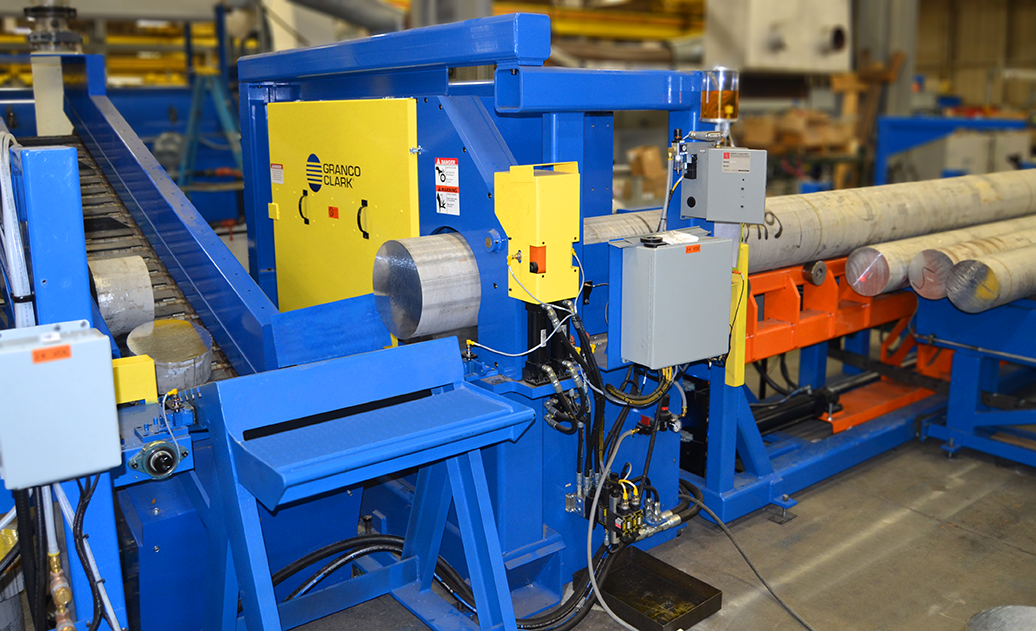

Cold Billet Saw
Cold Billet Saw Eliminates Costly Scrap: Accurate billet lengths every time Compensation/Two-Piece Billet Cutting: Maximum usage of raw materials Square Cuts: Clean-cut, sharp-edge billets Rugged construction Fully enclosed saw blade Compensation/two-piece billet cutting Servo controlled measurement Integrated with loading and unloading tables Square cuts Longevity Dependability Increased safety for the operator Low noise level Maximum usage of raw materials Reduced complexity of the equipment, cutting down on maintenance requirements Provides the information for accurate cut lengths Complete sawing system designed for ease of use and precise control Delivers a clean-cut, sharp-edged billet
More Info

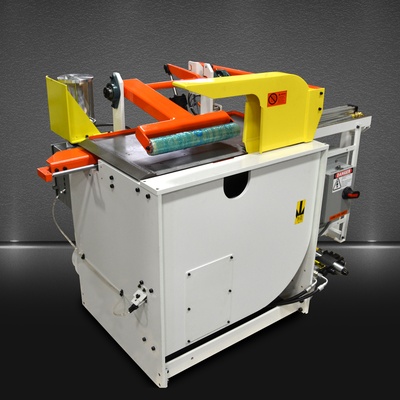

Sample Cut Saw
Sample Cut Saw As the demand for high-quality extrusions rises, so does the need for samples of the process. Granco Clark offers a cost-effective and automated solution to meet this challenge. This saw is located in the cooling table between the runout and the stretcher. When integrated properly, the extrusion will be longer than normal by the desired scrap length. It will be automatically positioned so that it enters the sample saw. The remaining usable extrusion continues to the stretcher while the cut piece is handled as the customer requires. This could be an inspection table, short belt, drop bin, etc. The saw is comprised of a compact “up-cut” style blade feed, with integrated clamping and chip collection …
More Info

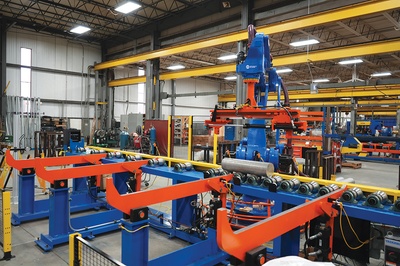

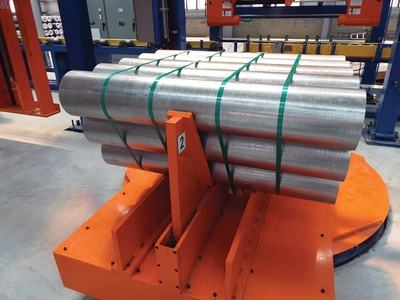

Cold Log & Billet Processing
Cold Log and Billet Processing Cold Log and Billet Cutting, Stacking and Banding GRANCO CLARK Log and Billet Saw, Auto Bander and Robotic Stacker are game-changers for manufacturing companies that produce logs and billets. The system automates the entire process, from cutting the logs to stacking the billets and banding them for transport. With this system in place, manufacturers can increase their productivity, reduce their labor costs, and improve the overall efficiency of their operations. If you’re looking for a solution to streamline your log and billet cutting process, the Log and Billet Saw, Auto Bander and Robotic Stacker are worth considering. Rugged construction Fully enclosed saw blade …
